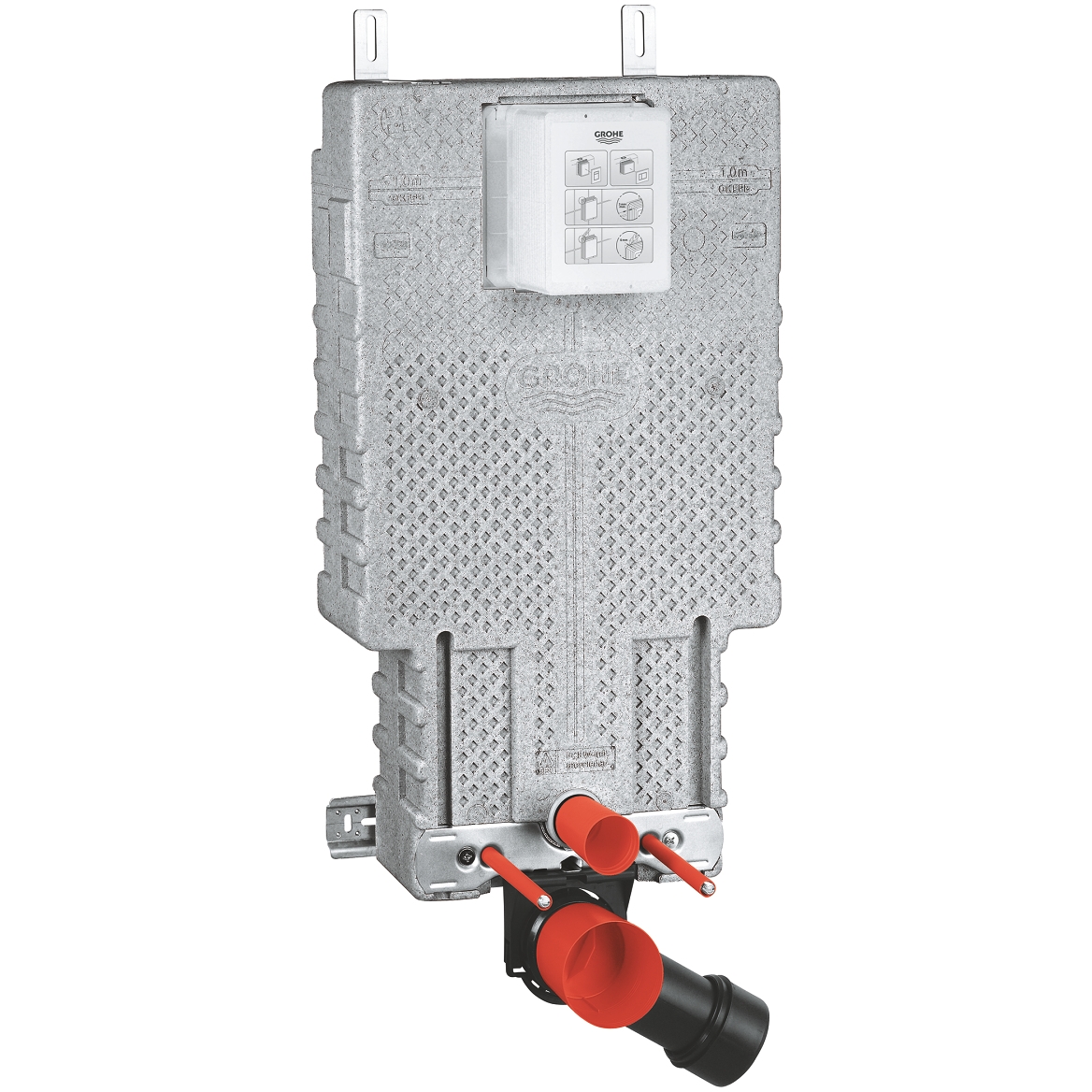

Grohe Uniset Element for WC with EPS Housing 38643

Uniset Element for WC with EPS housing
With flushing cistern GD 2 , 6 l – 9 l
Sound-insulating EPS module for masonry-in

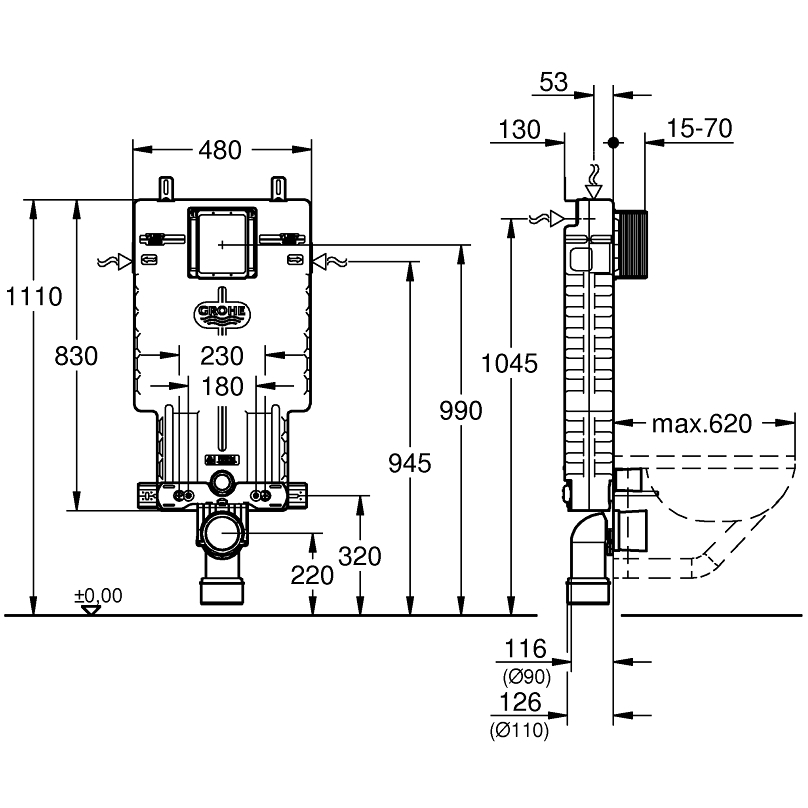

830 x 480 x 130mm
Rail adaptors for modular fixing
For single or series installation
Wall rail with fixing accessories for single installation
2 WC fixing bolts
Distance of fixing bolts 180/230mm
Fixing device for ceramic
Outlet bend diameter 90mm
Depth adjustable
Reducer diameter 90/110mm
Inlet and outlet connecting set
Flushing cistern GD 2, 6 – 9 l, containing following features: factory set 6 l and 3 l
Pneumatic discharge valve offering 2 modes of operation: dual flush or single flush
Connection from left/right/back or top
Low noise (group I acc. to German Noise Specification)
Insulated against condensation
1/2″ water supply connection including integrated angle valve and push fit flexible hose union
Inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally
No tools required for the installation of the inspection shaft incl. protection during construction phase
Preparation for shower toilets with additional accessory 40899 000 (sold separately)
For mounting of small flush plates please order revision shaft 40911 000 (sold separately)
