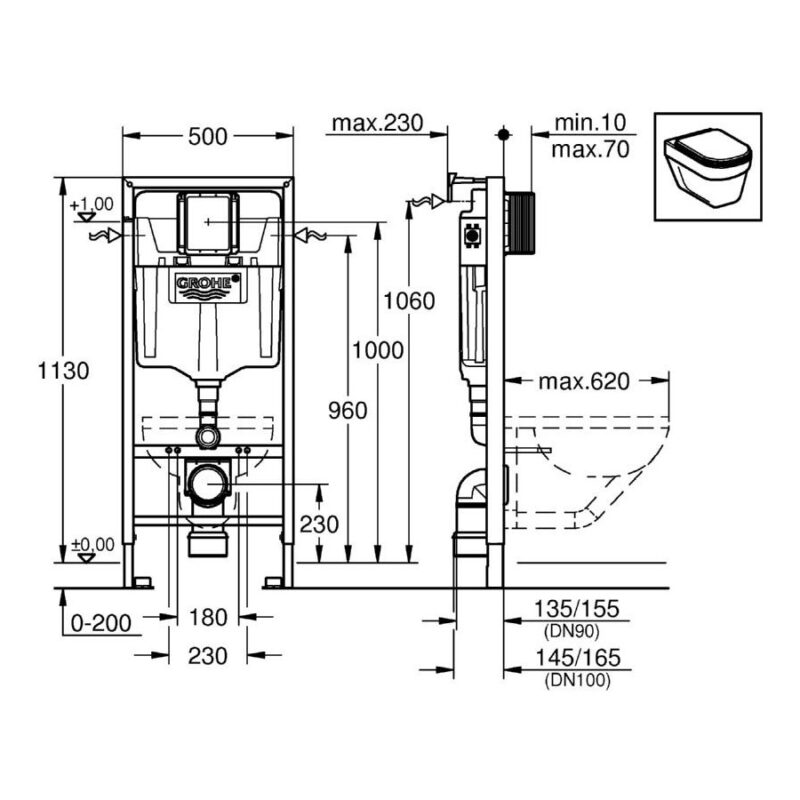

Grohe Rapid SL WC 1.13m 38536

Rapid SL WC
flushing cistern GD 2
with small maintenance access
1.13 m installation height
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
with fixed connections
for single or series installation
quick adjustment, lockable
fixing material
TUV approved
2 WC fixing bolts
fixing device for ceramic
distance of fixing bolts 180/230 mm
outlet bend diameter 80 mm
depth adjustable
reducer diameter 80/100 mm
inlet and outlet connecting set
adjustment ex factory 6 litre and 3 litre
pneumatic discharge valve offering 3 modes of operation:
dual flush or start/stop or non-interruptible
water supply from left/right or back
low noise (group I according to German Noise Specification)
DIN approved
insulated against condensation
1/2″ water supply connection including integrated angle valve and push fit flexible hose union
no tools required for the installation of the inspection shaft including protection during construction phase
for vertical or horizontal use
accessories for on-the-wall installation
