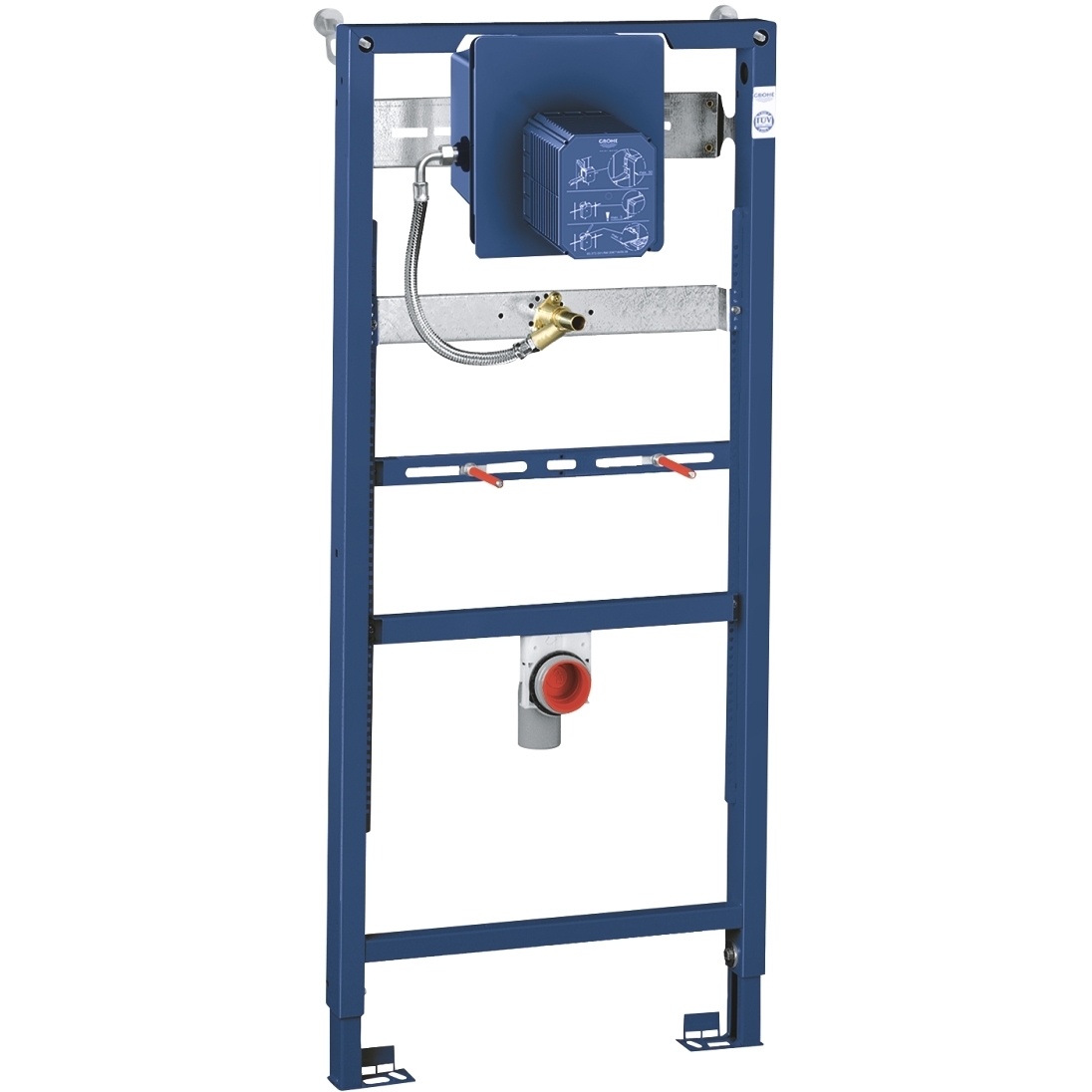

Grohe Rapid SL Element for Urinal with Infra-Red Electronic 38803

Grohe Rapid SL Element for Urinal with Infra-Red Electronic
with Grohe Rapido U

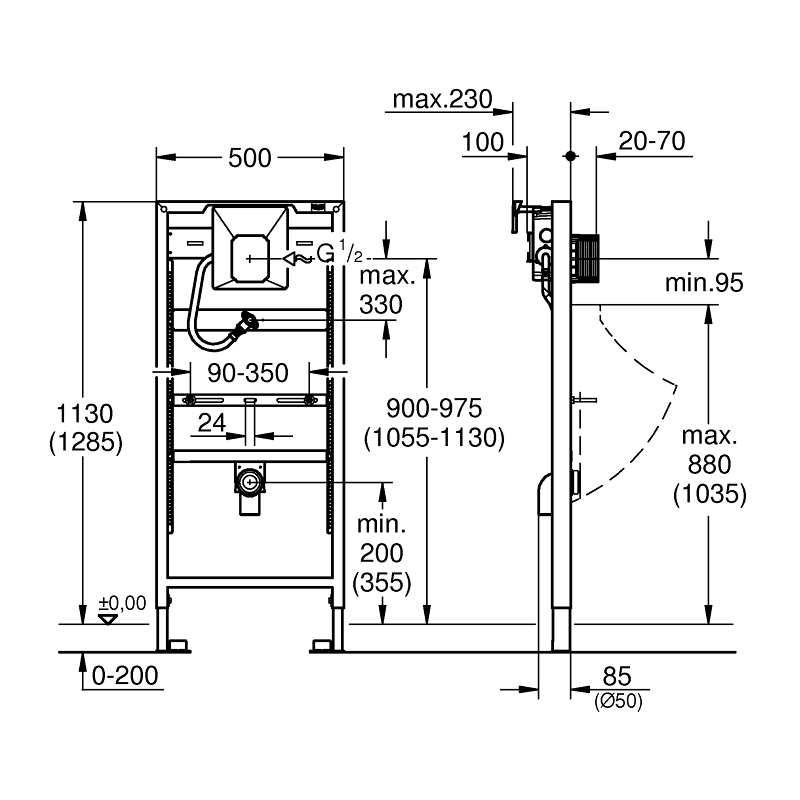

1.13 and 1.30m installation height
for manual actuation or Tectron
infra-red electronic 6 V or 230 V
for on-the-wall installations or studded walls
powder coated steel frame, self-supporting
for dry-cladding, completely pre-assembled
height adjustable fitting connections
quick adjustment, lockable
fixing material
TUV approved
HT-outlet bend 50mm
inlet connection and inlet connecting set
fixing bolts M8, with fixing device
for the ceramic
water group with stop valve
flow pressure minimum 0.5 bar
operating pressure maximum 10 bar
flush aid
functional unit checked ex factory
water supply connections 1/2″ outer thread
connecting box for mains supply 230 V
installation box with gasket
inspection shaft including protection during construction phase
including wall brackets 38558 00M for on-the-wall installation
