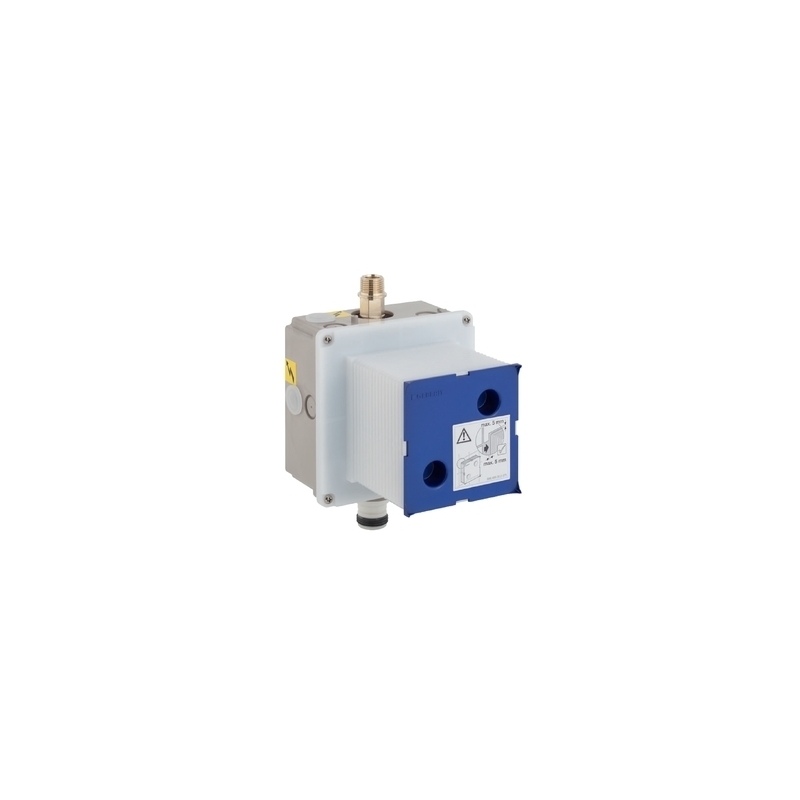

Geberit Universal Urinal Installation Set

Installation set for Geberit urinal flush control, universal
For concealed installation in solid construction
For receiving Geberit urinal flush controls (from year of manufacture 2009)
Water supply connection on the top centre
Pre-mounted conduit pipe for rinsing pipeline
With nipple made of plastic
Pre-mounted stop valve with throttle
Electrical connection prepared
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length without tools
Flow pressure 1-8 bar
Maximum test pressure, water 16 bar
Relative humidity 95 %
Maximum operating temperature, water 30°C
Flow rate at 1 bar without flow limiter 0.3 litre/second
Flow rate at 1 bar with flow limiter 0.24 litre/second
Calculated flow rate 0.3 litre/second
Minimum flow pressure for calculated flow rate 1 bar
