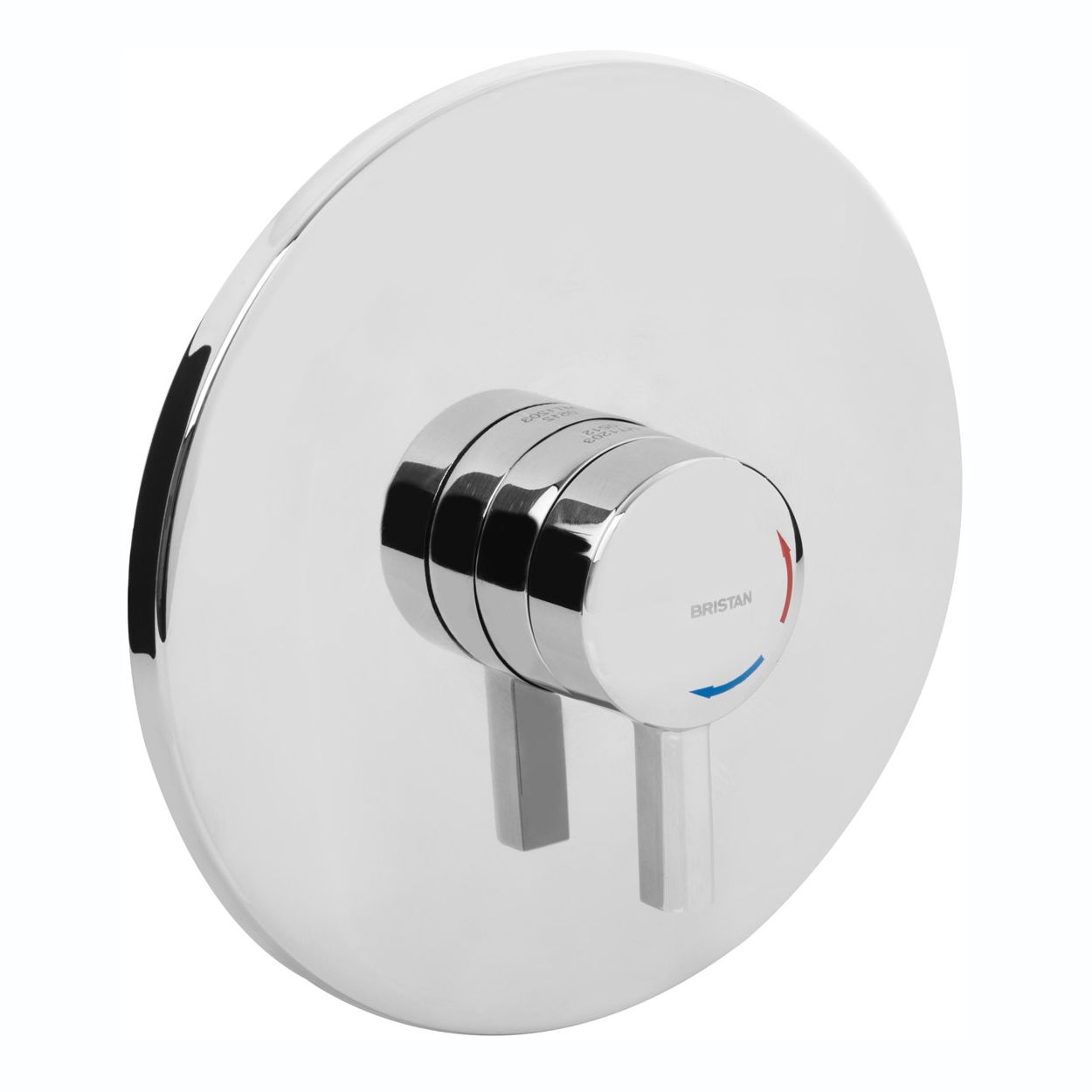

Bristan Opac Thermostatic Concealed Mini Valve with Chrome Lever

MINI TS1203 CL Shower Valve
Chrome plated
Brass construction
Designed to conform to BS EN 1111:1999 (HP) and BS EN 1287:1999 (LP)
Thermostatic Cartridge
Suitable for all plumbing systems (preferably balanced)
Inlet Connections: 15mm compression elbows
Outlet Connections: 1/2″ BSP
Working Pressures: Minimum 0.2 bar, Maximum 8.0 bar

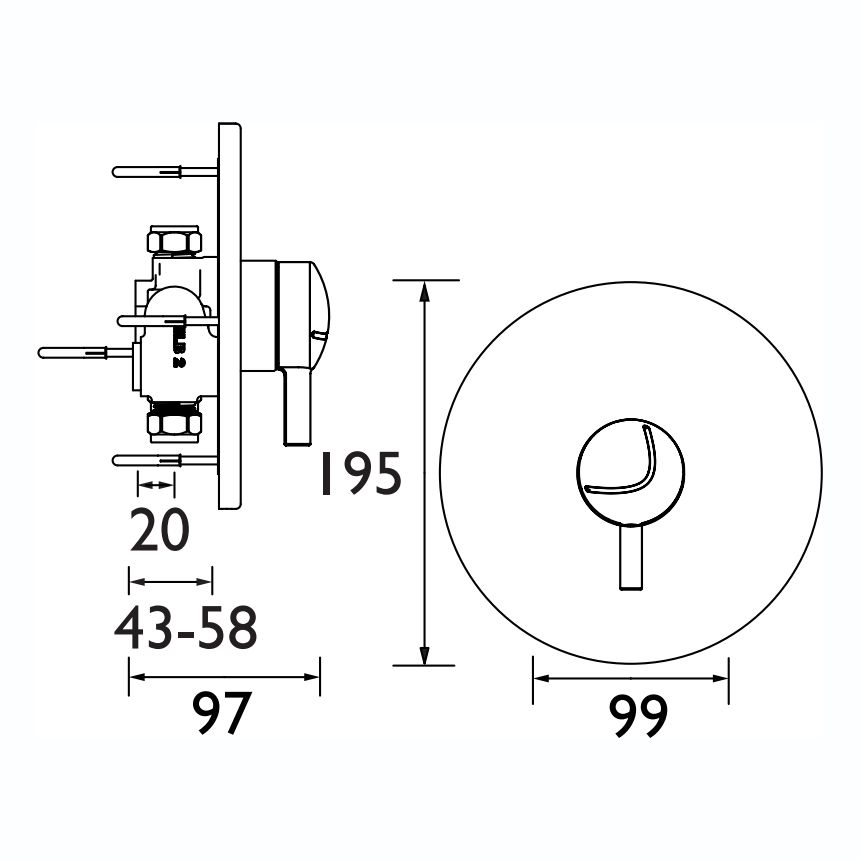

99mm /- 1mm inlet centres
Single sequential control for both temperature & flow
Anti-vandal stainless steel concealing plate
Automatic thermostatic shut-off in the event of hot or cold water failure
Check valves and serviceable filters as standard
Chrome plated to BS EN 248
